7000 Series Wheels
16" or 20" Cast Replacement Wheels
7000 Series from the Nolan Company are 16" or 20" diameter cast replacement wheels made from ductile alloy. Special bore diameters are available upon request.
Features
- 16″ or 20″ Diameter
- Tread and Flange Conforms to AREMA Standards
- Made from Ductile Alloy
| Model # | Diameter | Insulated | Wheel Material | Weight | Load Capacity Per Wheel | Bore Diameter |
|---|---|---|---|---|---|---|

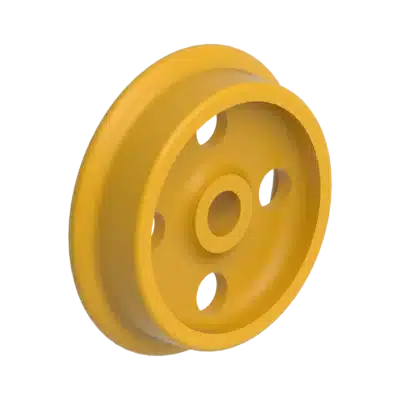

| 7001-50TI | 16" (406 mm) | Yes | Ductile Alloy | 108 lbs. (50 kg) | 12,500 lbs. (5,670 kg) | 3" (76.2 mm) |

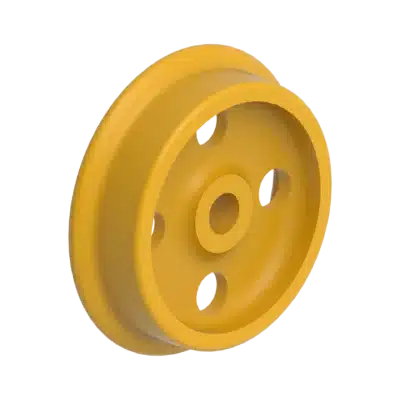

| 7001-50TN | 16" (406 mm) | No | Ductile Alloy | 112 lbs. (51 kg) | 12,500 lbs. (5,670 kg) | 3" (76.2 mm)) |

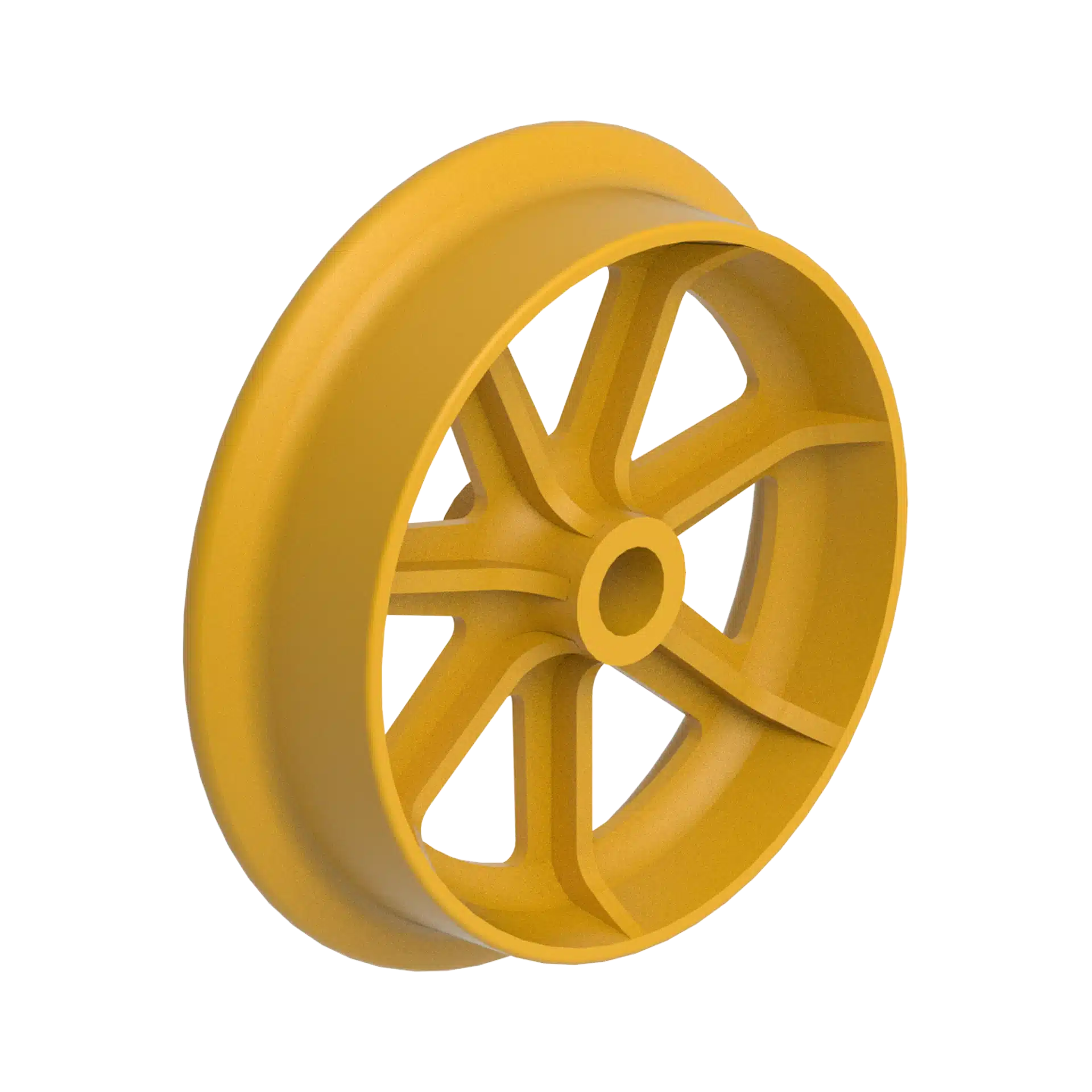

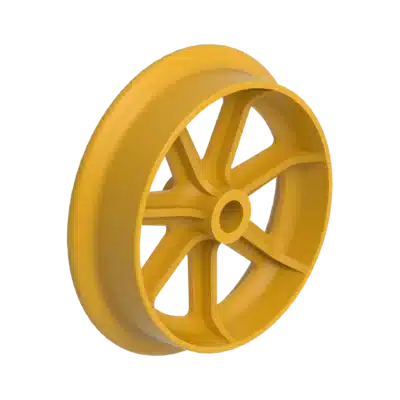

| 7005-30TI | 16" (406 mm) | Yes | Ductile Alloy | 82 lbs. (37 kg) | 2,850 lbs. (1,293 kg) | 2" (50.8 mm) |

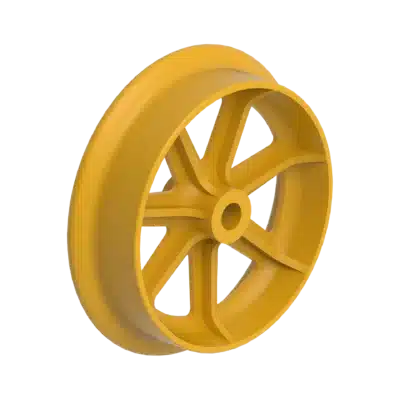

| 7005-30TN | 16" (406 mm) | No | Ductile Alloy | 82 lbs. (37 kg) | 2,850 lbs. (1,293 kg) | 2" (50.8 mm) |

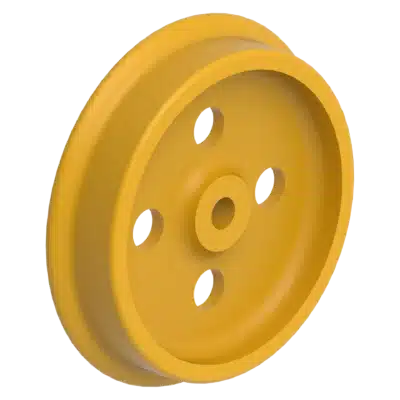

| 7013-30TI | 20" (508 mm) | Yes | Ductile Alloy | 153 lbs. (69 kg) | 2,850 lbs. (1,293 kg) | 2" (50.8 mm) |

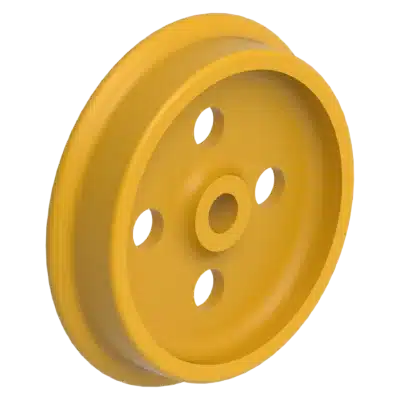

| 7013-50TN | 20" (508 mm) | No | Ductile Alloy | 152 lbs. (68 kg) | 12,500 lbs. (5,670 kg) | 3" (76.2 mm) |
