Bumping Posts
Bumping Posts with Optional CH
HDBP clamps to the rails at all four corners and HDBP-TR bolts through the rails at all four corners, with center rail and spiking unnecessary. Attached pads rest securely against the ties.
Features

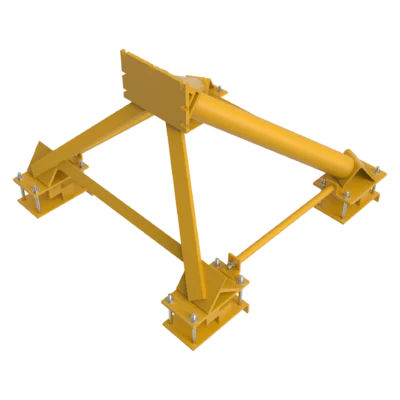

- HDBP Clamps to Rails

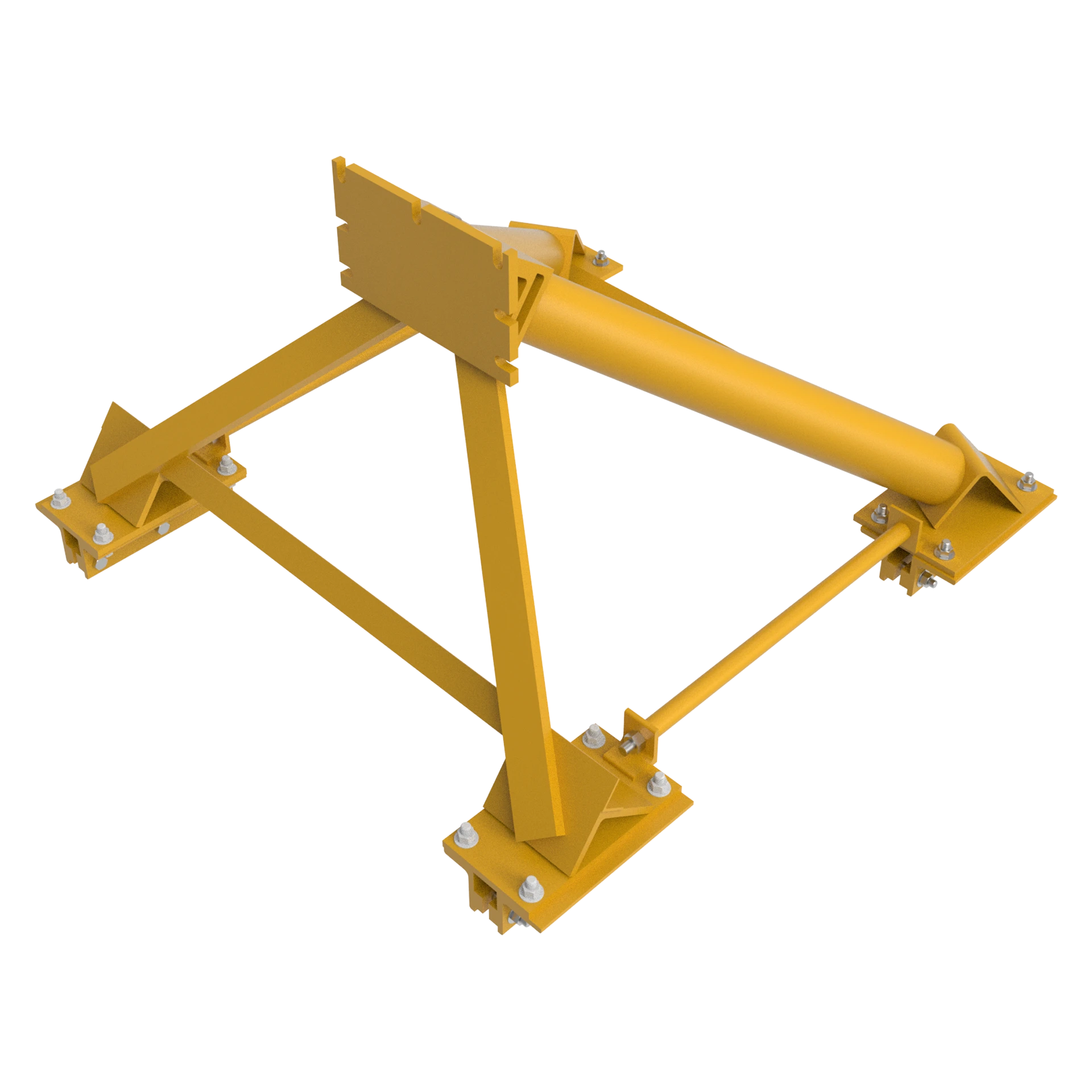

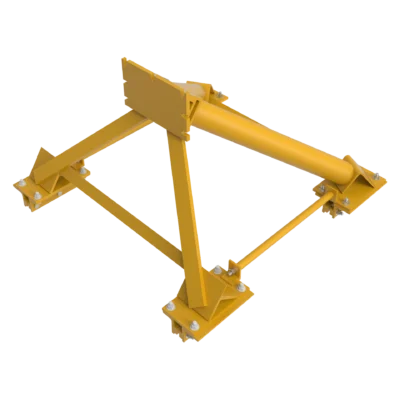

- HDBP-TR Bolts Through the Rails
- Built for 56-1/2″ (1,435 mm) Track Gauge
- Both Models Can Be Used with the Optional CH Cushion Head
| Model # | Type | Length | Yield Point | Weight |
|---|---|---|---|---|
| HDBP | Clamp On | 76-5/8" (1,946 mm) | 804,000 lbs. (364,602 kg) | 1,150 lbs. (522 kg) |
| HDBP-TR | Bolt On | 76-5/8" (1,946 mm) | 804,000 lbs. (364,602 kg) | 1,150 lbs. (522 kg) |
Accessories
| Model # | Type | Length | Yield Point | Weight |
|---|---|---|---|---|

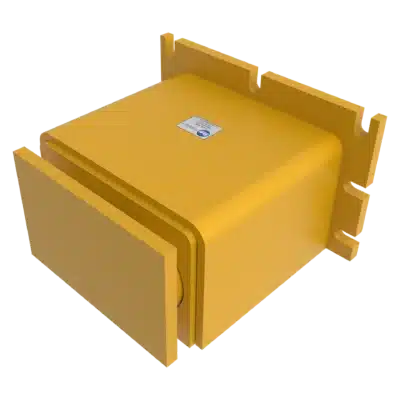

| CH | Optional (both) | N/A | N/A | 430 lbs. (195 kg) |
