Sliding Derails
Low-Profile Sliding Derails
SD Series sliding derails feature a unique design that eliminates the need for tie strapping or rail braces on the field side of rails. Will derail all rolling stock, including six-axle mainline locomotives.
Features
- Fabricated from Carbon Steel
- Will Derail All Rolling Stock including 6 Axle Mainline Locomotives when installed and used properly.
- Two Sizes Cover Rail Sizes 80 to 141 lbs.
- Sits only 2-3/4” (69.85 mm) Above the Top of Rail
- Unique Design Eliminates Tie Strapping or Rail Braces on the Field Side of Rails
- Can be Padlocked to the Rail Head On or Off the Rail to Ensure Visibility and Safety, as well as, Prevent Unauthorized Removal
| Model # | Type | Throw Direction | Rail Size | Weight |
|---|---|---|---|---|
| SD-3L | Single | Left | 5" to 6-1/2" (80-110 lbs.) | 260 lbs. (117.93 kg) |
| SD-3R | Single | Right | 5" to 6-1/2" (80-110 lbs.) | 260 lbs. (117.93 kg) |
| SD-4L | Single | Left | 6-5/8" to 7-1/16" (112-141 lbs.) | 260 lbs. (117.93 kg) |
| SD-4R | Single | Right | 6-5/8" to 7-1/16" (112-141 lbs.) | 260 lbs. (117.93 kg) |

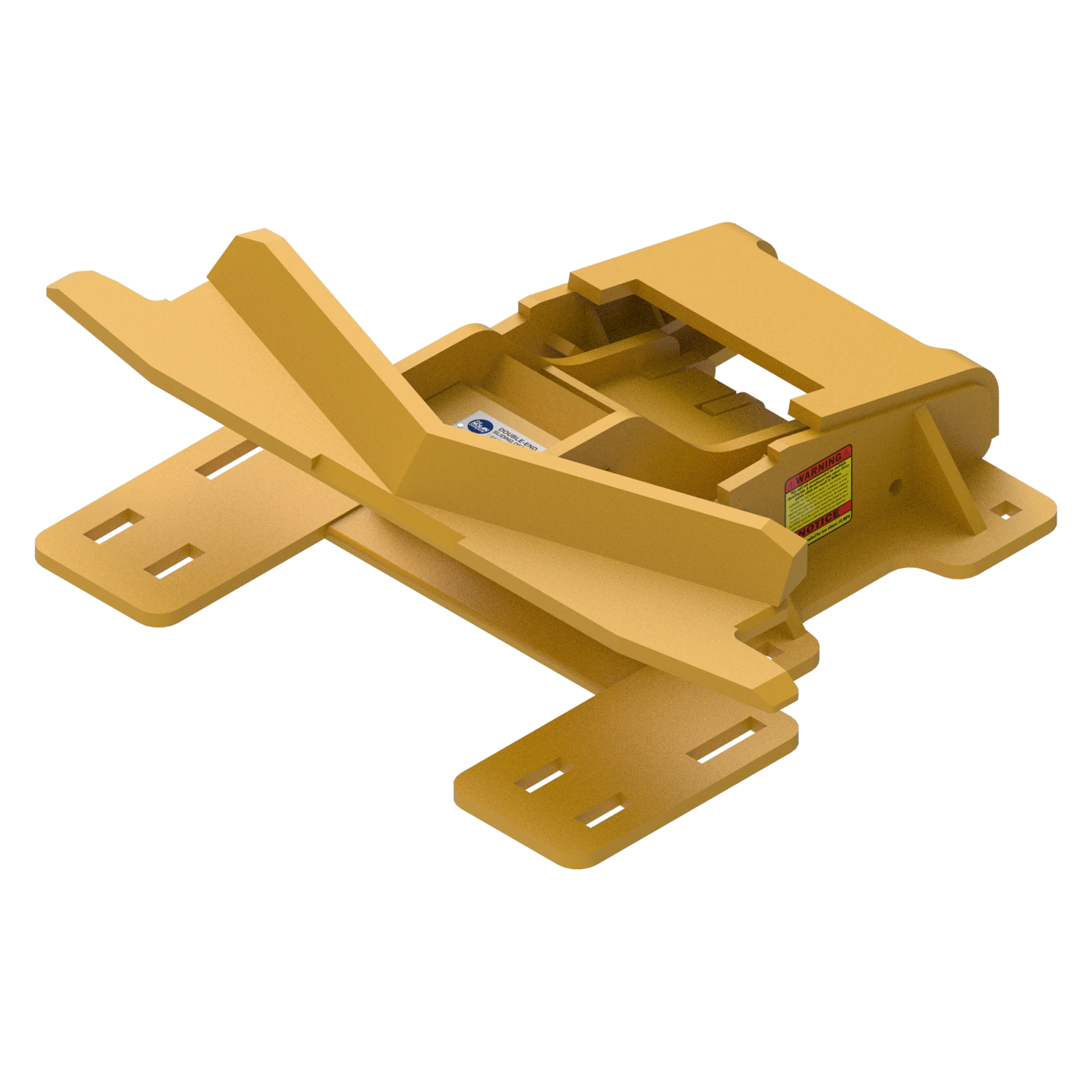

| SD-5 | Double | BiDirectional | 5" to 6-1/2" (80-110 lbs.) | 285 lbs. (129.27 kg) |
| SD-6 | Double | BiDirectional | 6-5/8" to 7-1/16" (112-141 lbs.) | 285 lbs. (129.27 kg) |
Accessories
| Model # | Weight | Description |
|---|---|---|
| LSE-2A | 91 lbs. (41.28 kg) | Operating Stand |
| LSF-2A | 82 lbs. (37.2 kg) | Operating Stand |
| RA1566-1A | 27 lbs. (12.25 kg) | Connecting Rod - Near Rail |
| RA1566-1B | 31 lbs. (14.06 kg) | Connecting Rod - Far Rail |
| RA1566-2A | 27 lbs. (12.25 kg) | Connecting Rod - Near Rail |
| RA1566-2B | 31 lbs. (14.06 kg) | Connecting Rod - Far Rail |
