Switch Point Protectors

SPP Sets for Reliable Switch Point Protection

Increase the service life of switch points by absorbing the impact of passing rail car wheels. Each SPP set from Nolan includes manganese steel face plate and steel shim, steel back-up plate, two track bolts, two nuts, and two spring washers.

Features

Made from Manganese Steel
Bolts Securely to Inside of Straight
Main Rail Leading to Switch
Gets Stronger with Each Deflection
Reversible – Doubles Service Life

Model #	Rail Sizes	Weight

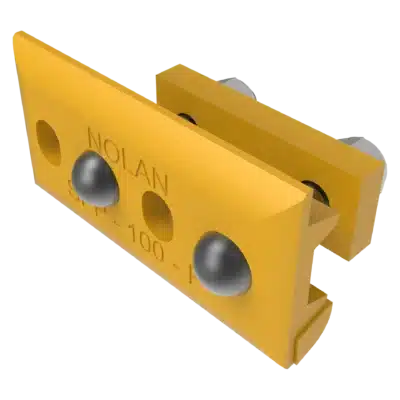

SPP-1	ASCE: 90lbs. \| ARA-B: 100 lbs. \| PS: 100 lbs.	11 lbs. (4.99 kg)

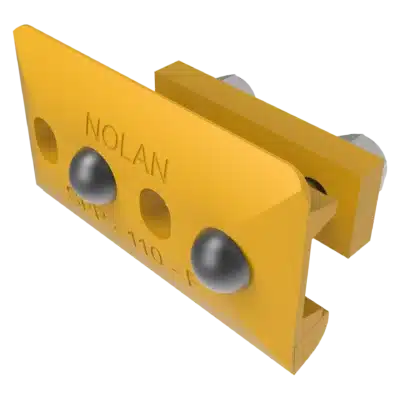

SPP-2	AREMA: 100, 110 lbs. \| ARA-A: 100 lbs.	11 lbs. (4.99 kg)

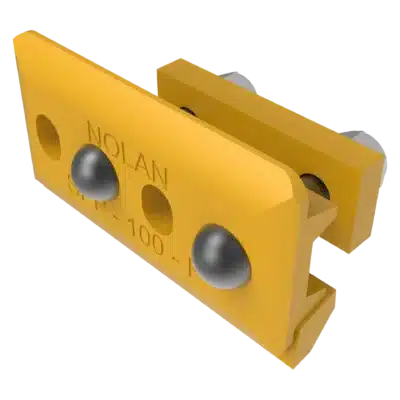

SPP-3	ARA-A: 90 lbs. \| ASCE: 100 lbs.	12 lbs. (5.44 kg)

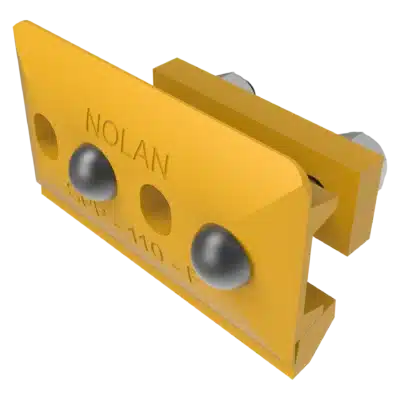

SPP-4	NYC: 105 lbs. \| PS: 130 lbs.	12 lbs. (5.44 kg)
SPP-6	AREMA: 112, 115, 119 lbs.	12.5 lbs. (5.67 kg)

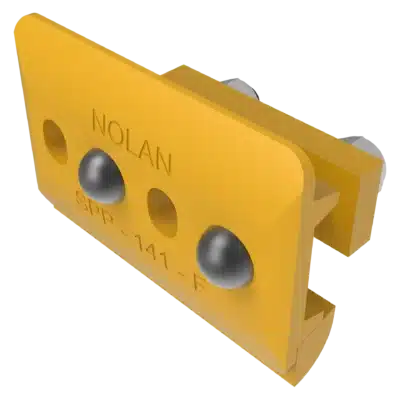

SPP-7	AREMA: 133 lbs.	15 lbs. (6.80 kg)
SPP-8	AREMA: 141 lbs.	13 lbs. (5.90 kg)

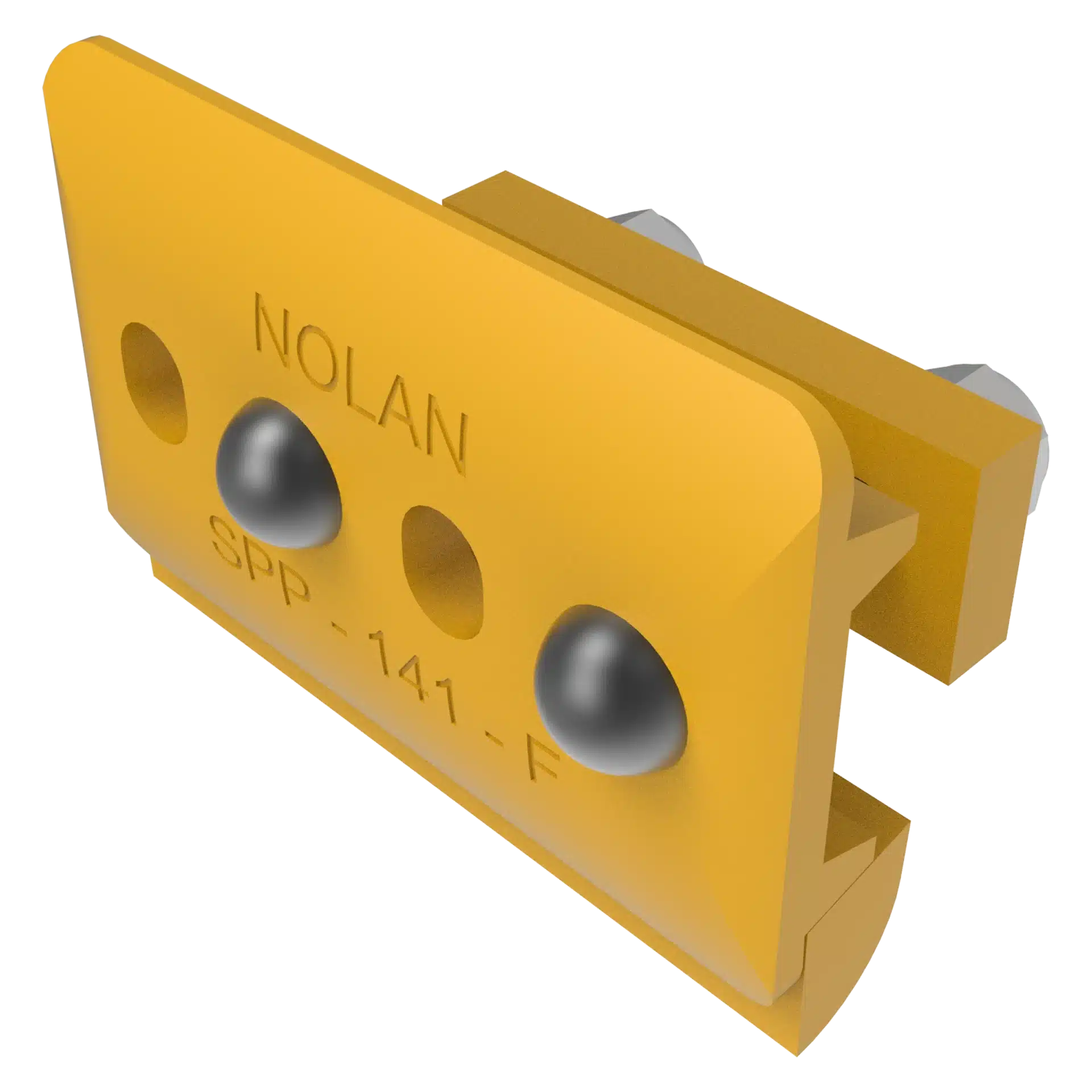

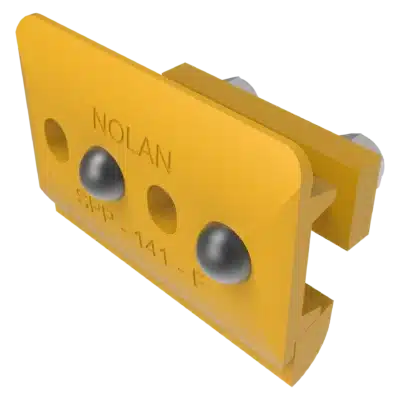

SPP-9	AREMA: 131, 132, 136, 140 lbs. \| AB: 141 lbs. \| NYC: 127 lbs.	14.5 lbs. (6.58 kg)

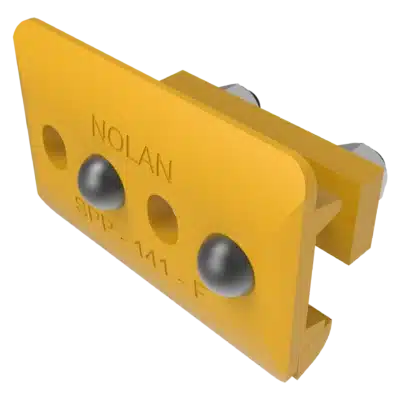

SPP-15	AREMA: 130 lbs.	15 lbs. (6.80 kg)
SPP-16	ASCE: 85 lbs.	11 lbs. (4.99kg)
SPP-17	ASCE: 80 lbs.	11 lbs. (4.99kg)
