Tool and Supply Carts

Heavy-Duty Steel & Aluminum Carts

Convenience, durability and a large load capacity have made Nolan’s Tool and Supply Carts an industry standard. Taller handle reduces strain when transporting loads. Optional braking systems also available.

Download Brochure

Contact Us

Features

Load Capacities from 1,000–5,000 lbs. Depending on Model
Steel or Aluminum Perforated Decks for Strength and Reduced Weight

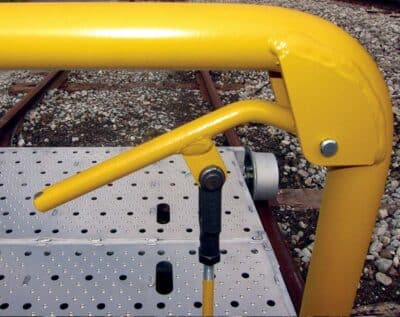

Two-Direction Travel with Removable Handle and Optional Parking Brakes
Insulated Axles with Cast Aluminum or Special Ductile Alloy Wheels
Track Gauge Built for 56-1/2″ (Custom Widths for Select Models)

Model #	Length	Width	Weight	Height with Handle	Deck Height Above Rails	Deck Area L x W	Load Capacity	Wheel Type / Diameter

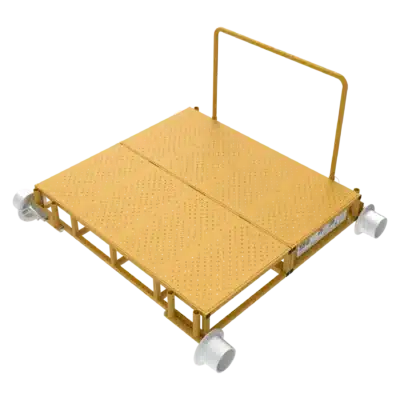

TS-4	56-3/4" (1,441 mm)	63-1/2" (1,613 mm)	168 lbs. (76.2 kg)	35-5/8" (905 mm)	9" (229 mm)	47-5/8" x 52-1/4" (1,210 mm x 1,327 mm)	5,000 lbs. (2,268 kg)	Aluminum 5" (127 mm)

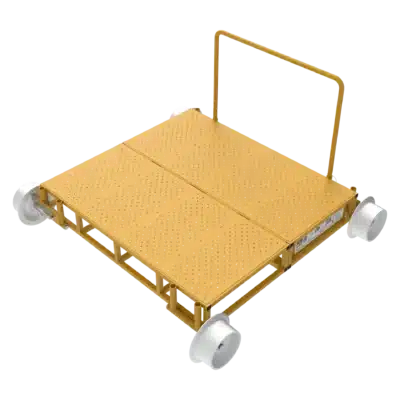

TS-5	59-3/4" (1,518 mm)	63-1/2" (1,613 mm)	192 lbs. (87.1 kg)	37-1/8" (943 mm)	10-1/2" (267 mm)	47-5/8" x 52-1/4" (1,210 mm x 1,327 mm)	5,000 lbs. (2,268 kg)	Aluminum 8" (203 mm)

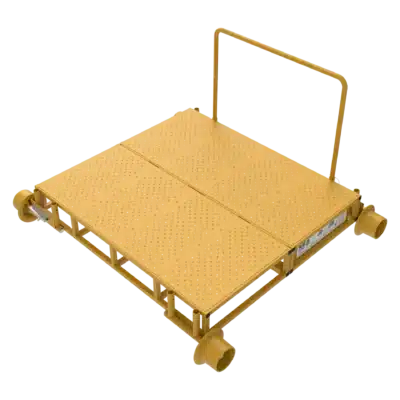

TS-6	56-3/4" (1,441 mm)	63-1/2" (1,613 mm)	204 lbs. (92.5 kg)	35-5/8" (905 mm)	9" (229 mm)	47-5/8" x 52-1/4" (1,210 mm x 1,327 mm)	5,000 lbs. (2,268 kg)	Ductile Alloy 5" (127 mm)

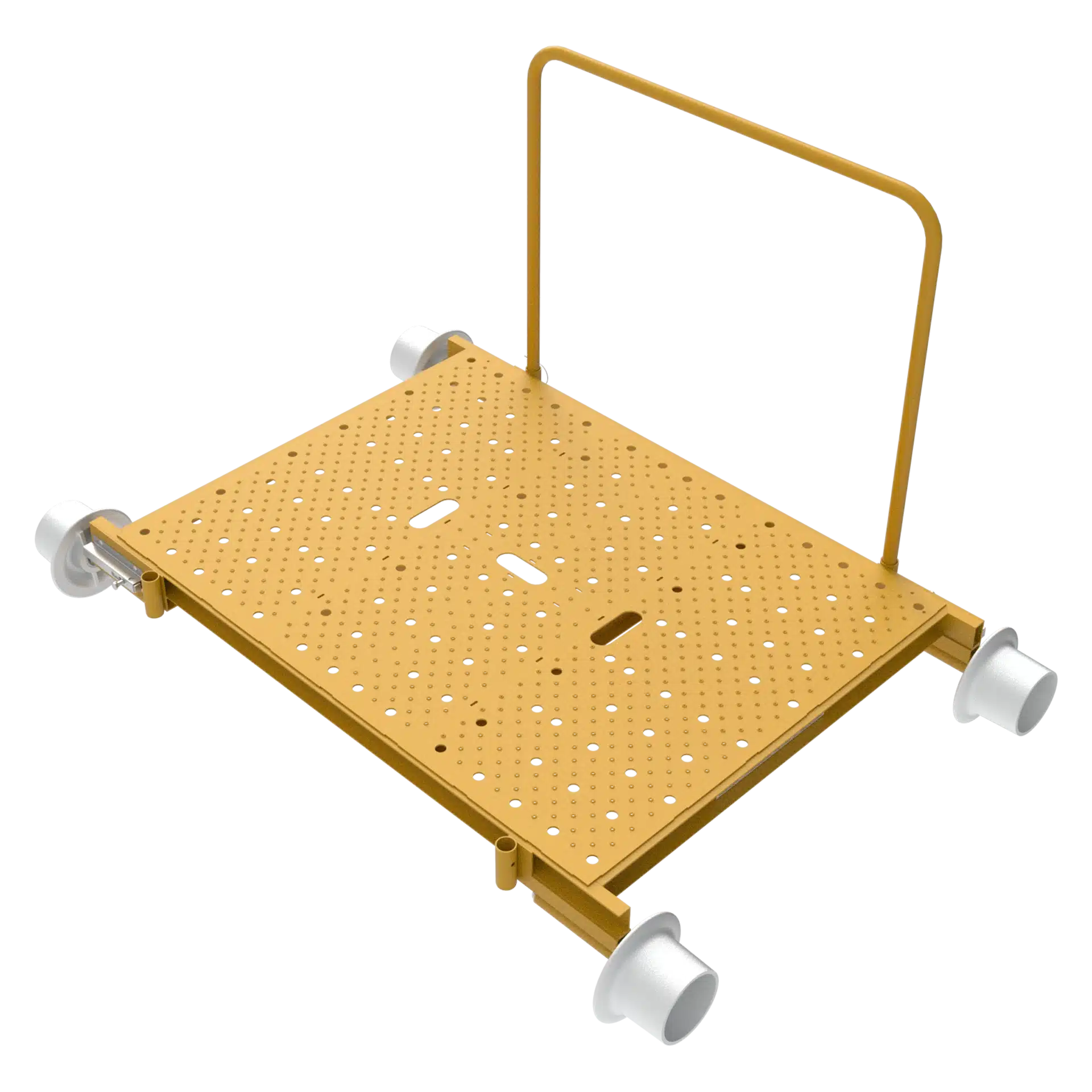

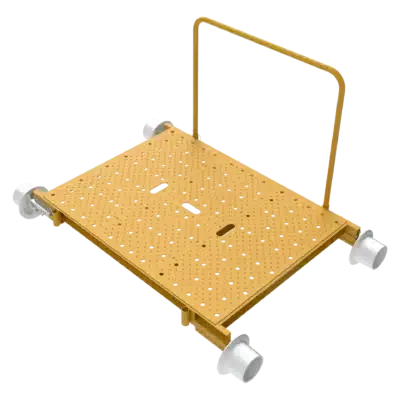

TS-7	43-1/2" (1,105 mm)	63-1/2" (1,613 mm)	110 lbs. (49.9 kg)	35-5/8" (905 mm)	6-3/8" (168 mm)	36" x 48" (914 mm x 1,219 mm)	1,000 lbs. (454 kg)	Aluminum 5" (127 mm)

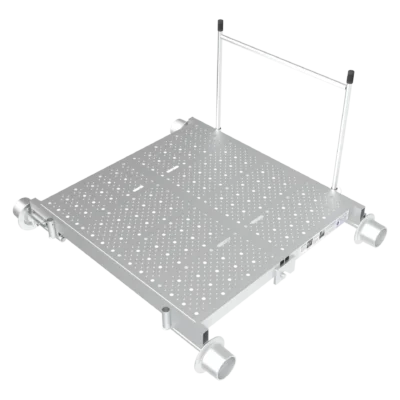

ATS-1B	50" (1,270 mm)	63-1/2" (1,613 mm)	99 lbs. (45 kg)	44" (1,117 mm)	6-15/16" (176 mm)	50" x 49" (1,270 mm x 1,245 mm)	5,000 lbs. (2,268 kg)	Aluminum 5" (127 mm)

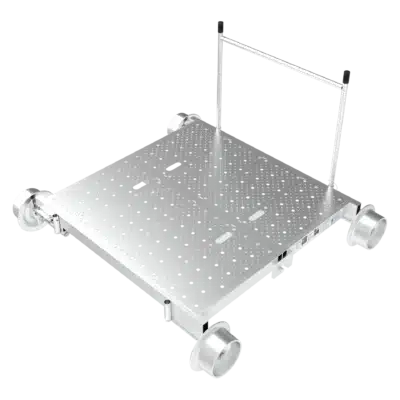

ATS-2B	50" (1,270 mm)	63-1/2" (1,613 mm)	128 lbs. (58 kg)	45-1/2" (1,156 mm)	8-7/16" (214 mm)	50" x 49" (1,270 mm x 1,245 mm)	5,000 lbs. (2,268 kg)	Aluminum 8" (203 mm)
