TS Series Wheels
5" or 8" Cast Replacement Wheels
TS Series from the Nolan Company are 5" or 8" diameter cast replacement wheels with bearings. Available in heat-treated aluminum or ductile alloy.
Features
- 5″ or 8″ Diameter with Bearings
- Heat-Treated Aluminum or Ductile Alloy Wheel
- 1,250 lbs. (567 kg) Load Capacity per Wheel
- Accepts 1″ Diameter Axle
| Model # | Diameter | Wheel Material | Weight | Load Cap per Wheel | Bore Diameter |
|---|---|---|---|---|---|

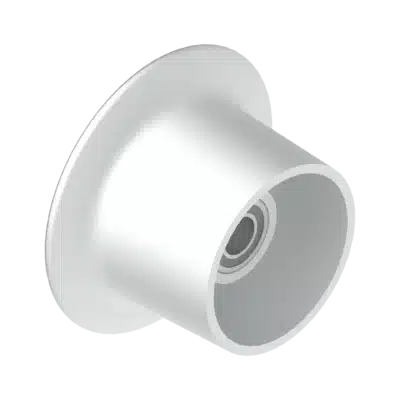

| TS-12 | 5" (127 mm) | Aluminum | 6-1/2 lbs. (3 kg) | 1,250 lbs. (567 kg) | 1" (25.4 mm) |

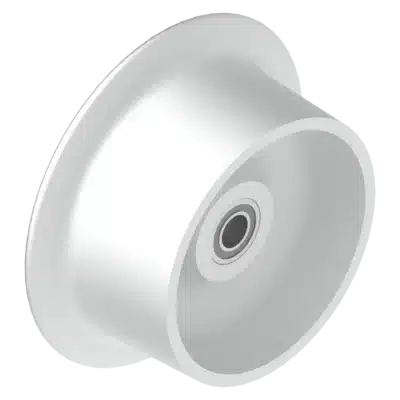

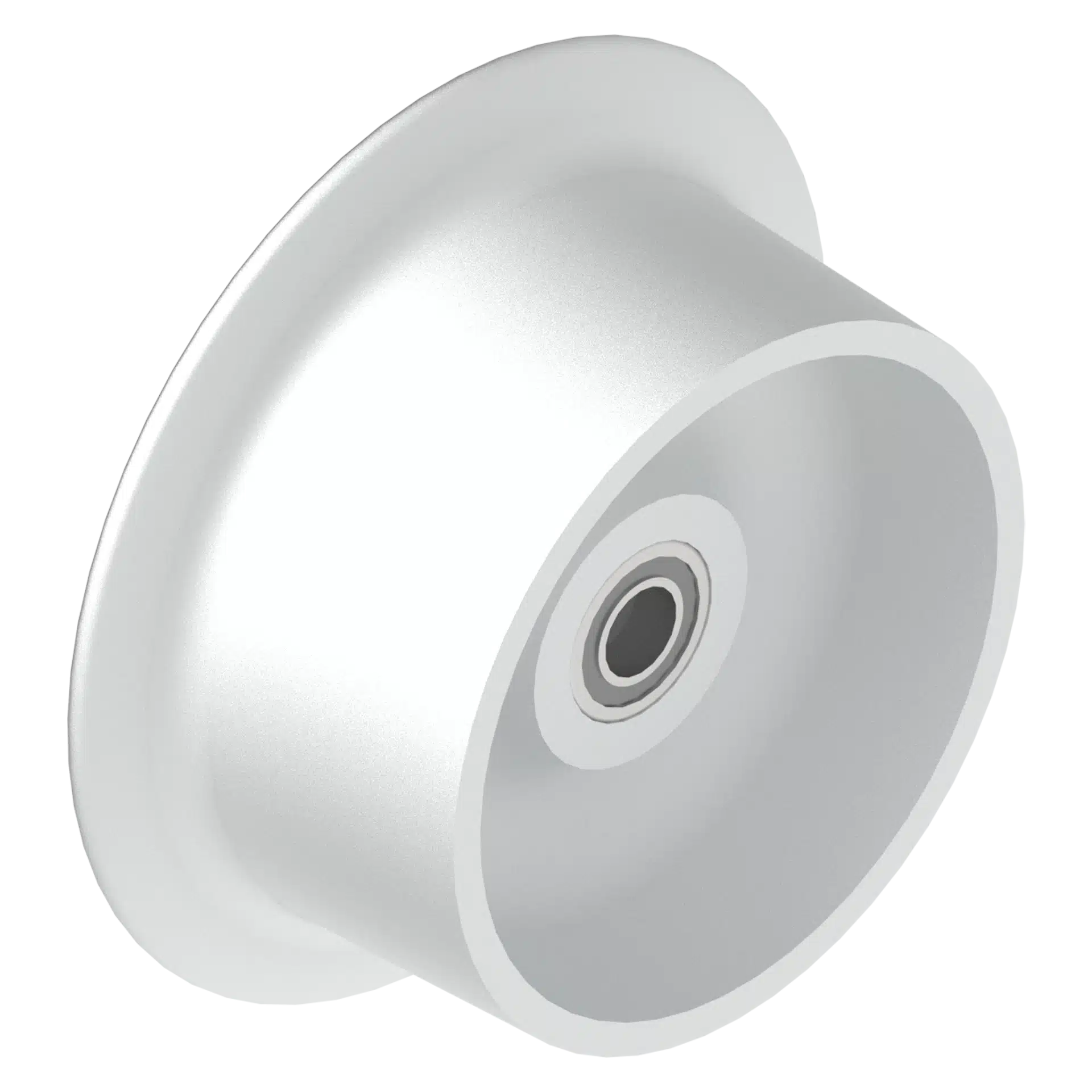

| TS-12A | 8" (203 mm) | Aluminum | 11 1/2 lbs. (5 kg) | 1,250 lbs. (567 kg) | 1" (25.4 mm) |

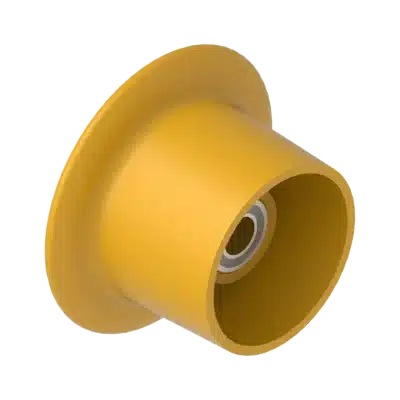

| TS-13 | 5" (127 mm) | Ductile Alloy | 14 lbs. (6 kg) | 1,250 lbs. (567 kg) | 1" (25.4 mm) |
