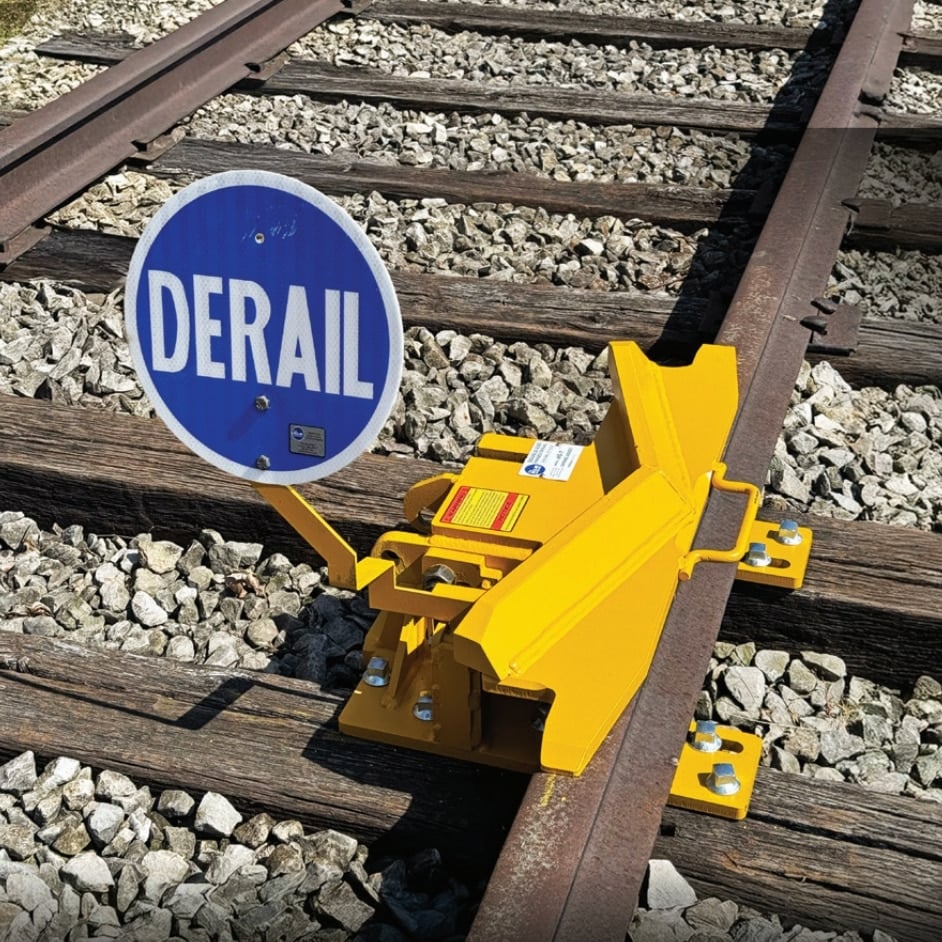

Auto-Flag Hinged Derails
Benefits
Our NEW Auto-Flag Hinged Derails link the flag, staff and derail for maximum visibility and safety. This OSHA and FRA compliant mechanism makes flag placement automatic, and fail-safe – reducing the risk of human error.
- Automatically raises or lowers staff and flag when derail is engaged or disengaged
- Available in BOTH standard and spring-assist versions
- Spring-assist models easily lift on and off the rail head
- Derail all rolling stock including 6-axle mainline locomotives up to 10mph
- Low-Profile at 2-3/4″ above rail head
- Fabricated from durable carbon steel
- All models are lockable BOTH on and off the rail head
- Flags sold separately
Specifications
| Model # | Type | Throw Direction | Rail Size | Weight |
|---|---|---|---|---|
| HD-5-AF | Standard | Bidirectional | 4-5/8” to 6-1/2” (70-110 lbs.) | 188 lbs. |
| HD-6-AF | Standard | Bidirectional | 6-5/8” to 7-7/16” (112-141 lbs.) | 189 lbs. |
| HD-7-AF | Spring-Assist | Bidirectional | 4-5/8” to 6-1/2” (70-110 lbs.) | 190 lbs. |
| HD-8-AF | Spring-Assist | Bidirectional | 6-5/8” to 7-7/16” (112-141 lbs.) | 191 lbs. |
