7400 Series Axle Assemblies
16" or 20" Wheel / Axle Assemblies

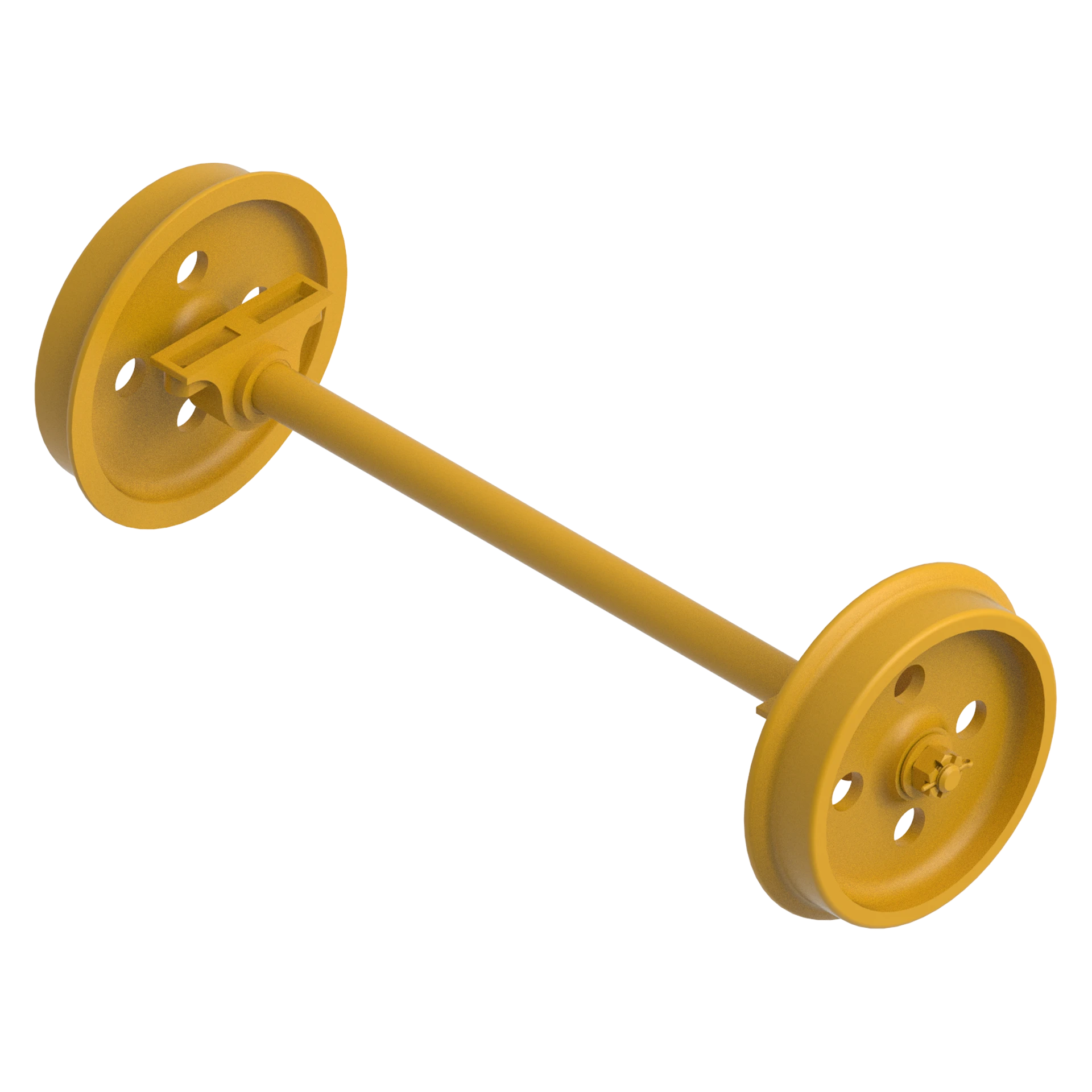

74 Series assemblies come complete with one-piece tapered steel axle, two pillow block roller bearings, and two tapered bore 16″ or 20″ cast ductile iron wheels. Available in both insulated and non-insulated models.
Features
- Two 16″ or 20″ Wheels with Pillowblock Bearings
- Tapered Steel Axle
| Model # | Diameter | Wheel Material | Insulated | Weight | Load Capacity 2 Axles | Axle Diameter |
|---|---|---|---|---|---|---|
| 7401-30 | 16" (406 mm) | Ductile Alloy | Yes | 235 lbs. (107 kg) | 10,000 lbs. (4,563 kg) | 2" (50.8 mm) |
| 7463-30 | 16" (406 mm) | Ductile Alloy | No | 235 lbs. (107 kg) | 10,000 lbs. (4,563 kg) | 2" (50.8 mm) |
| 7404-50 | 16" (406 mm) | Ductile Alloy | No | 400 lbs. (181 kg) | 40,000 lbs. (18,144 kg) | 3" (76.2 mm) |
| 7462-50 | 16" (406 mm) | Ductile Alloy | Yes | 400 lbs. (181 kg) | 40,000 lbs. (18,144 kg) | 3" (76.2 mm) |
| 7423-50 | 20" (508 mm) | Ductile Alloy | No | 480 lbs. (218 kg) | 40,000 lbs. (18,144 kg) | 3" (76.2 mm) |
